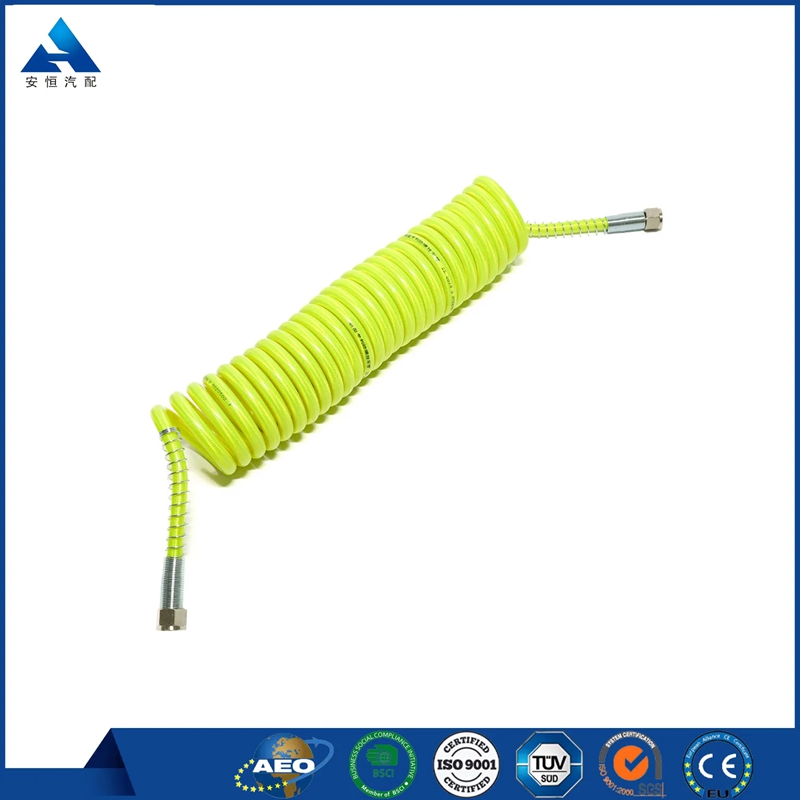

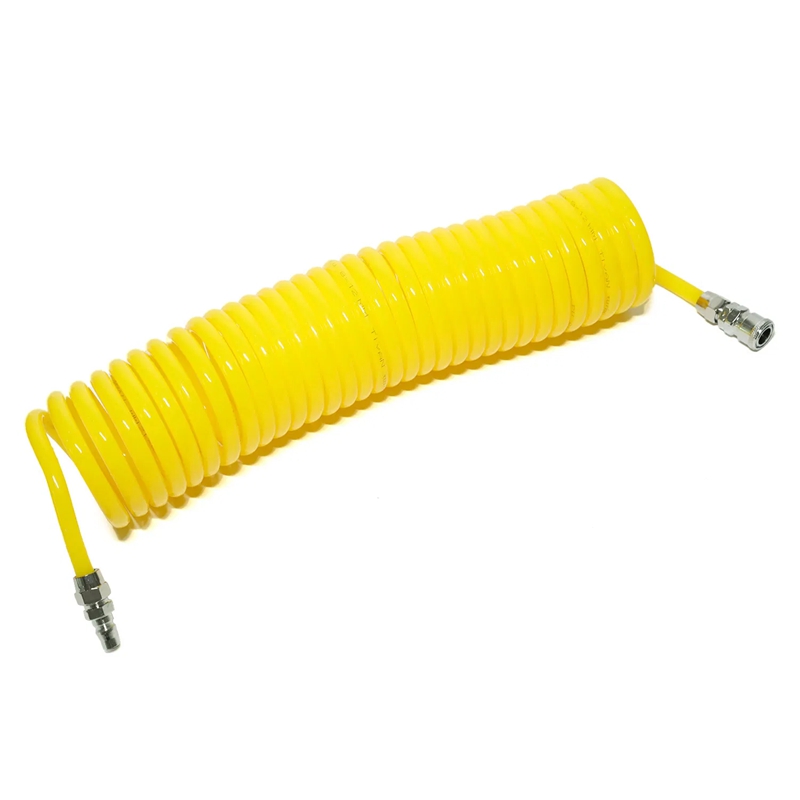

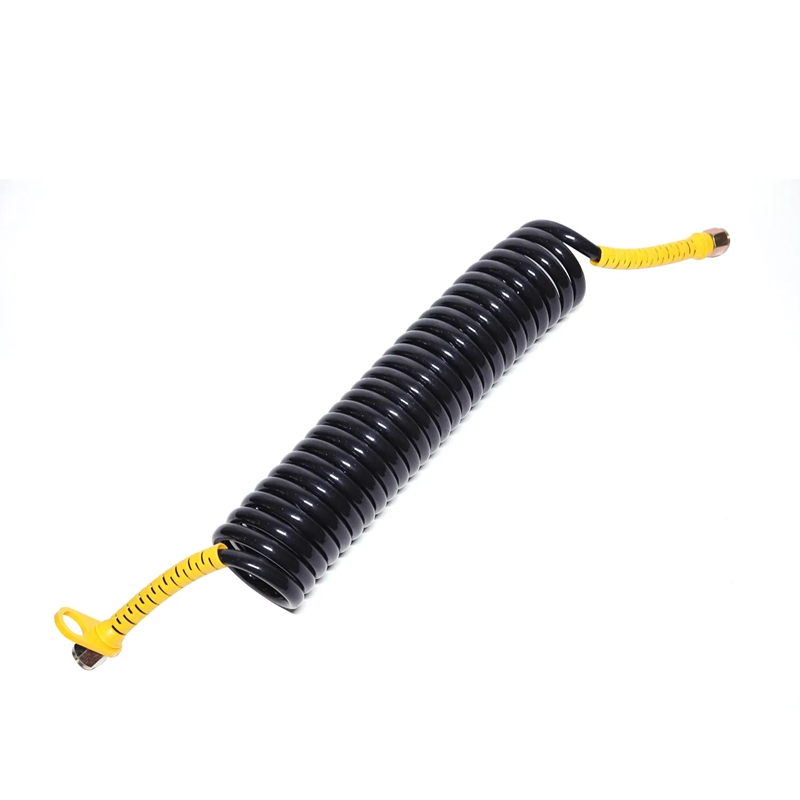

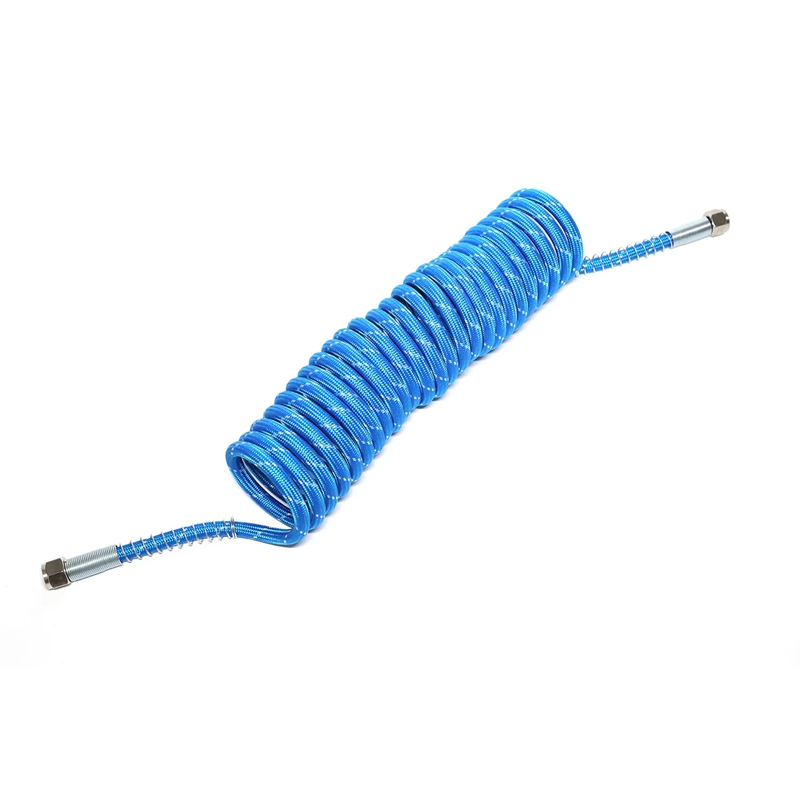

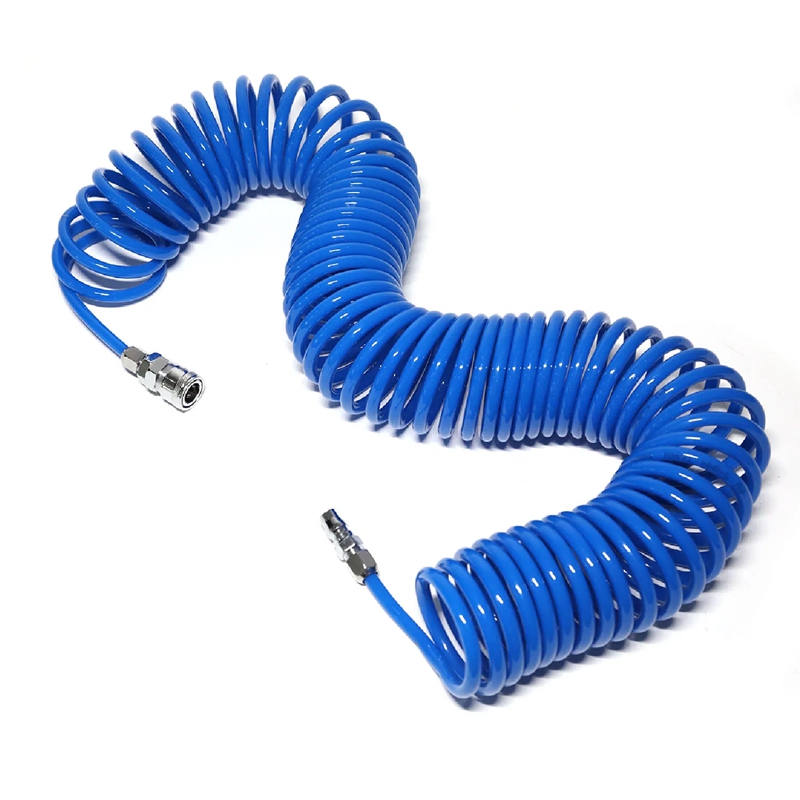

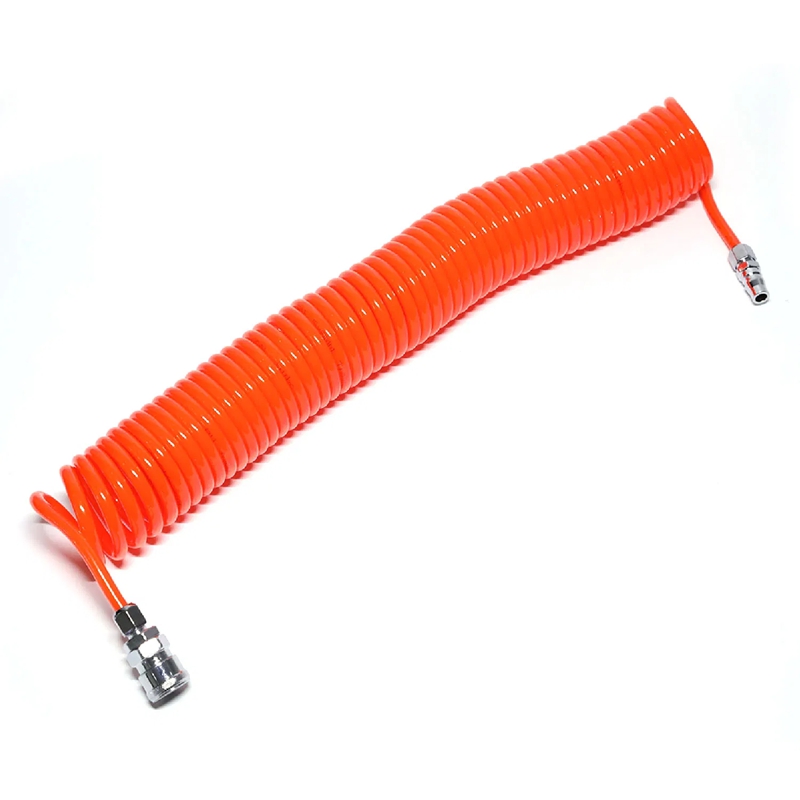

Anheng’s spiral air hoses are made from high-elasticity PU or nylon material, providing excellent stretchability, resilience, and pressure resistance. Widely used in air brake systems for heavy trucks and trailers, pneumatic tools, and industrial connections, the coiled structure saves space and performs reliably in dynamic working environments.
Product Advantages:
Tangle-Free & Retractable
Spiral design allows for automatic recoil, ideal for frequent extension and retraction.
Durable & Pressure-Resistant
Highly resistant to wear and pressure, suitable for outdoor and heavy-duty applications.
Easy to Install
Available with pre-installed quick connectors for fast and easy setup.
Weather Resistant
Performs well in cold temperatures and strong sunlight, suitable for global climates.
Customizable Options
Various colors, lengths, and fittings available—OEM/ODM services supported.
| OD(mm) | ID(mm) | Wall(mm) | maximun working pressure(mpa) | Hardness | Color |
| -35℃~23℃ | -35℃~40℃ | -35℃~60℃ |
| 4 | 2.5 | 0.75 | 1.0 | 1.1 | 0.9 | 85A
90A
95A | black
red
blue
yellow
transparent
white
orange |
| 5 | 3 | 1 | 1.1 | 0.8 | 0.7 |
| 6 | 4 | 1 | 1.2 | 0.9 | 0.8 |
| 8 | 5 | 1.5 | 1.0 | 1.0 | 0.8 |
| 10 | 6.5 | 1.75 | 1.0 | 0.8 | 0.7 |
| 12 | 8 | 2 | 1.2 | 0.9 | 0.8 |
| 14 | 10 | 2 | 1.1 | 0.8 | 0.7 |
| 16 | 12 | 2 | 1.0 | 0.8 | 0.6 |
